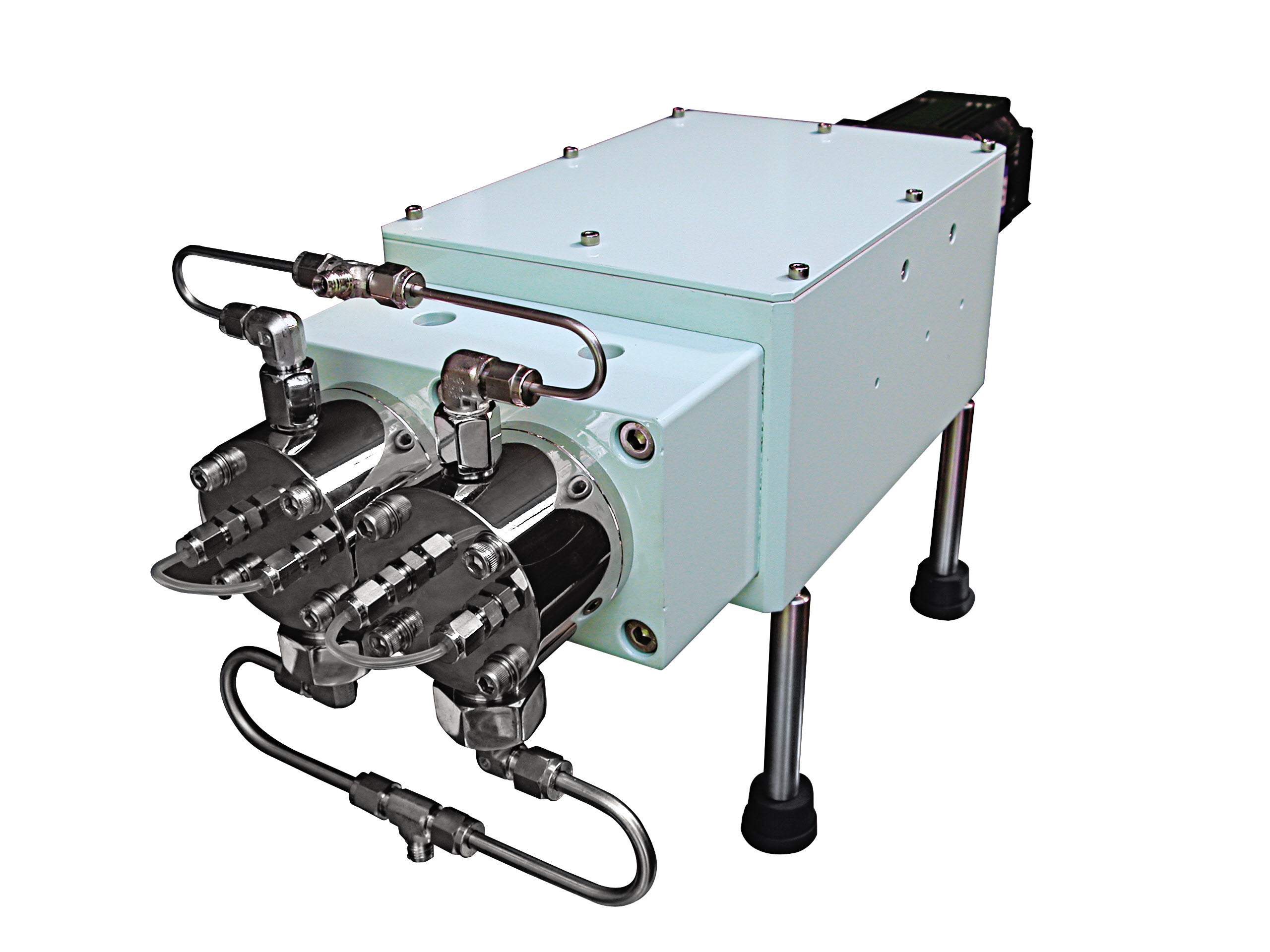

2 Heads Plunger Metering Pump
Product Features
-
· 2 heads plunger metering pump is an economical high pressure precision metering pump that employs a dual plunger system.
-
· Apply a special constant-speed cam that discharges the discharge fluid uniformly.
-
· This plunger metering pump achieves low pulsation rates with a constant flow rate.
-
· All components are machined using a machining center and CNC, reducing machining and assembly errors with high precision.
-
· The check valve, piston, and seal are designed for quick and easy maintenance.
-
· Fast response and precise flow control are possible with inverter and servo control.
-
· Plunger metering pump is economical as there is no need for a separate pulsation dampening device.
Product Specifications
| Model. | discharge per revolution (㎖/rev) | discharge rate per minute (㎖/min) | maximum discharge pressure (Mpa) | flow accuracy | flow reproducibility | pulsation rate | |
| YHPA | 10 | 1.57 | 188 | 20 | ≤ ± 0.5% | ≤ ± 0.2% | ≤ ± 2.0% |
| 15 | 3.53 | 424 | 18 | ||||
| 20 | 6.28 | 754 | 15 | ||||
| YHPB | 15 | 5.30 | 636 | 15 | |||
| 20 | 9.42 | 1,131 | 12 | ||||
| 25 | 14.73 | 1,761 | 10 | ||||
| YMPB | 25 | 19.63 | 2,356 | 12 | |||
| 30 | 28.27 | 3,393 | 8 | ||||
| 40 | 50.27 | 6,032 | 5 | ||||
Pump heads can be customized according to customer requirements, with materials such as 316L, PEEK, and titanium.
The available viscosity range is from 1 to 20,000 mP·s.
The operating temperature is from -30℃ to 120℃
In addition to standard specifications, we manufacture various types of pumps based on capacity and discharge pressure.
The maximum discharge and rotational speed vary depending on the viscosity.
Discover this pulseless, cost-effective, accurate high pressure plunger metering pump. Contact us today for more information.
