HPLC Columns
Aegispak
01.

제품설명
02.

제품규격
03.

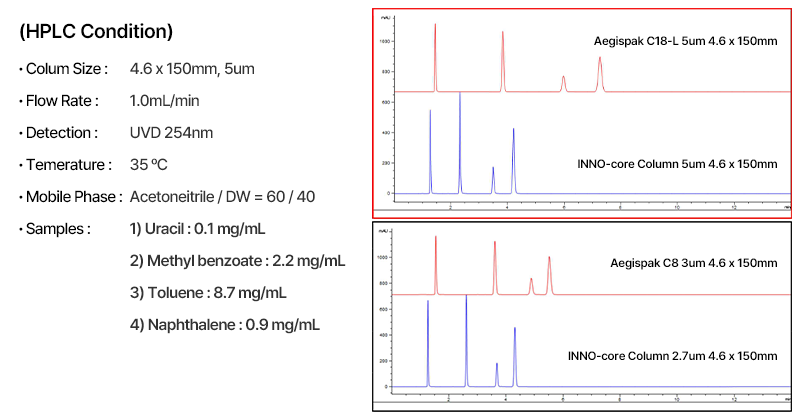

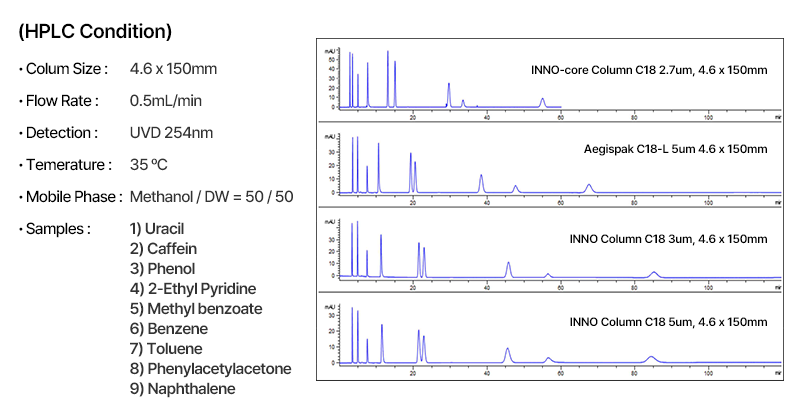

분석자료
·

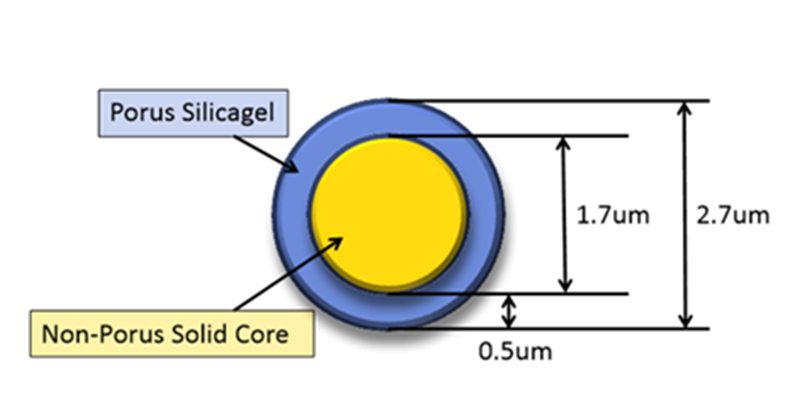

Solid Core Technologies

Column USP Class No. Particle Size(um) Pore Size(Ằ) Surface Area(m2/g) C(%) Usable pH range End Capping
INNO-Core Column C18 L1 2.7, 5 120 115 7 2.0~8.5 O
INNO-Core Column C18-PE L1 2.7, 5 120 115 5 2.0~8.5 O
INNO-Core Column C8 L7 2.7, 5 100 115 4.5 2.0~8.5 O
INNO-Core Column Phenyl-Hexyl L11 2.7, 5 100 115 5 2.0~8.5 O
INNO-Core Column PFP L43 2.7, 5 100 115 5 2.0~8.5 O
2.7um 5um
INNO-Core Column C18
INNO-Core Column C18-PE
INNO-Core Column C8
INNO-Core Column Phenyl-Hexyl
INNO-Core Column PFP

(Horizontal=Inner Diameter(mm) / Vertical=Length(mm)

※ 공급 가능 규격에서 길이는 원하시는대로 공급 가능합니다.
Classify 2.1 3.0 4.6
50
100
150
250
Particle Size
2.7um = 027
5um = 05
Product Name (Abbreviation)
INNO-Core Column C18 NC
INNO-Core Column C18-PE NCPE
INNO-Core Column C8 NC8
INNO-Core Column Phenyl-Hexyl NCPH
INNO-Core Column PFP NCPFP
Inner Diameter (mm)
2.1mm = 021
3.0mm = 030
4.6mm = 046
Length (mm)
50mm = 05
100mm = 10
150mm = 15
250mm = 25
Column Particle Size(um) Product Name (Abbreviation) Inner Diameter (mm) Length (mm) Product Number
INNO-Core Column C18 2.7um 4.6 x 150mm 27 NC 46 15 027NC04615
INNO-Core Column C18-PE 2.7um 3.0 x 250mm 27 NCPE 30 25 027NCPE03025
INNO-Core Column C8 5um 4.6 x 150mm 5 NC8 46 15 05NC804615
INNO-Core Column PFP 2.7um 2.1 x 100mm 27 NCPFP 21 10 027NCPFP02110
