HPLC Columns
Aegispak
01.

Product Description
02.

Product Specifications
03.

Analysis Data

To minimize the effects of metal impurities and residual silanol groups present in silica gel, we have utilized chromatography-optimized silica gel that has been re-purified by our company.

The surface of the purified silica gel was coated with a silicon polymer using chemical vapor deposition (CVD), and then functional groups were directly bonded to synthesize the packing material (gas-phase reaction).

To remove any remaining silanol groups that may still be present after the synthesis of the packing material, we conducted additional end-capping under high temperature and high pressure, minimizing the influence of residual silanol groups to the utmost extent.

The packing material, which has functional groups directly bonded to the silicon polymer (-Si-R), exhibits a subtle difference in separation patterns compared to conventional packing materials that bond functional groups to silanol groups (-Si-O-Si-R).

USP Class No. Particle Size(um) Pore Size(Ằ) Surface Area(m2/g) C(%) Usable pH range End Capping
Aegispak C18-F L1 3, 5 120 320 13 1.0~9.0 O
Aegispak C18-FA L1 3, 5 120 320 11 1.0~9.0 O
Aegispak C18-L L1 3, 5 100 330 14 1.0~9.0 O
Aegispak C18-LA L1 3, 5 100 330 13 1.0~9.0 O
Aegispak C8 L7 3, 5 100 330 8 1.0~9.0 O

Aegispak C18-F

· This column features relatively low hydrophobicity and low surface polarity.

· It is effective for the rapid analysis of highly hydrophobic compounds. (USP L1)

Aegispak C18-FA

· This is an Aegispak C18-F column that has been treated with strong acid for 6 days. It is highly resistant to acids. (USP L1)

Aegispak C18-L

· This is a column with excellent aqua characteristics (tested with 100% buffer mobile phase for over 100 hours).

· It features high hydrophobicity and low surface polarity.

· As a general-purpose column with moderate retention characteristics, it is highly versatile for the analysis of both polar and hydrophobic compounds. (USP L1)

Aegispak C18-LA

· This is an Aegispak C18-L column that has been treated with strong acid for 6 days. It is a column with strong acid resistance. (USP L1)

Aegispak C8

· This column features low hydrophobicity and high surface polarity.

· It allows for faster analysis compared to C18, but effective separation requires a significant polarity difference between samples.

· It is highly effective for rapid analyses, such as content testing of single substances. (USP L7)

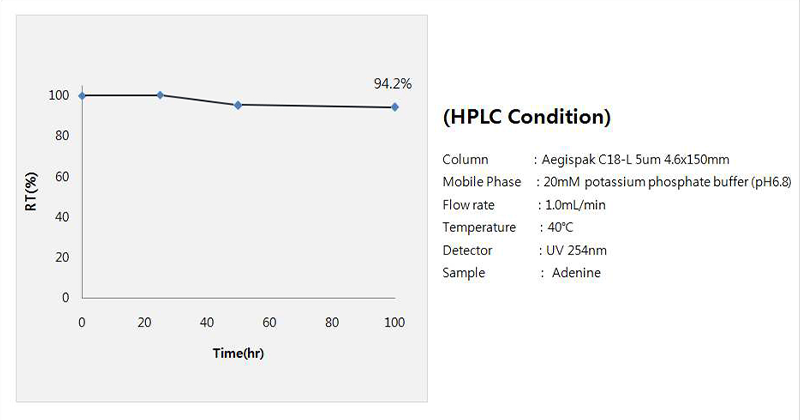

The Aegispak C18-L column shows minimal retention time (RT) variation even after flowing 100% buffer mobile phase for over 100 hours.

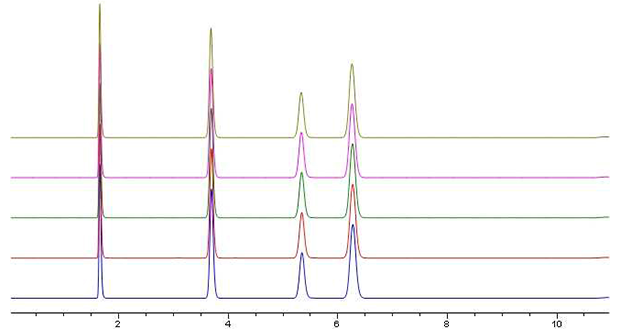

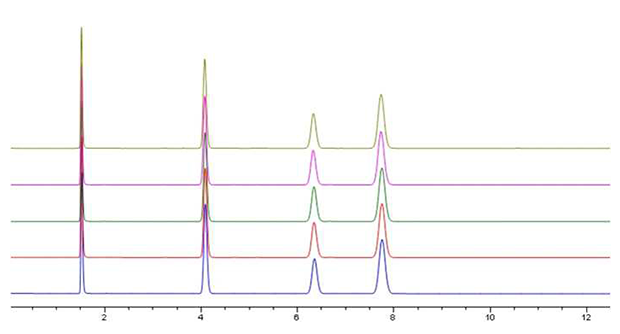

Aegispak columns exhibit excellent lot reproducibility

< Aegispak C18-L 5um, 4.6×150mm >

<Aegispak C18-F 5um, 4.6×150mm>

3um 5um 10um (100Å)  10um (120Å)
Aegispak C18-F
Aegispak C18-FA
Aegispak C18-L
Aegispak C18-LA
Aegispak C8
Aegispak Silica

(Horizontal=Inner Diameter(mm) / Vertical=Length(mm)

※ The length can be supplied as per your request within the available specifications
Classify 1.5 2.0 3.0 3.9 4.0 4.6 6.0 8.0 10 20
30
33
35
40
45
50
55
60
75
80
100
110
120
125
150
200
220
250
300
