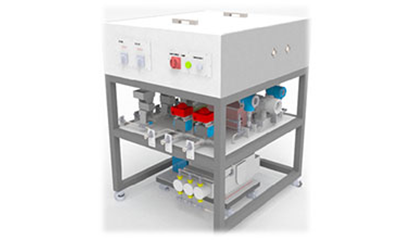

Full Automatic Prep HPLC System

The YJ-Prep HPLC System is a high-performance fully automated system that can be customized to meet customer requirements, available in both non-explosion-proof and explosion-proof versions for pilot and production use.
Product Features
· Continuous automated operation possible with PC control.
· Equipped with a high-pressure metering pump that offers excellent flow accuracy and precision with no pulsation.
· User-friendly operating software.
· Compliance with GMP IQ, OQ, PQ, and CSV validation.
· Easy-to-maintain structure.
· Customizable models available.
Product Specifications
Model | YJ-Prep-007 | YJ-Prep-015 | YJ-Prep-030 | YJ-Prep-080 | YJ-Prep-200 | YJ-Prep-500 | |
Flow Rate (ℓ/min) | 0.3~0.7 | 0.75~1.5 | 1.5~3 | 3~8 | 8~20 | 15~50 | |
Recommended Column ID. (㎜) | 50 100 |
100 150 |
150 20 |
200 300 450 |
300 450 600 |
600 800 100 |
|
Max. Pressure (㎫) | 10 | ||||||
Tube | Suction | 1/4" | 3/8" | 1/2" | 1/2" | 3/4" | 1-1/2" |
Discharge | 1/8" | 1/4" | 3/8" | 3/8" | 1/2" | 1" | |
Main Pump | 3 Heads Plunger Metering Pump | ||||||
Gradient | Binary Gradient (5 to 95%) Static Mixer | ||||||
Sample Pump | 2 Heads Plunger Metring Pump | ||||||
UV Detector | Variable Wavelength 200~800nm, 4 channels | ||||||
Flowmeter | Mass Flow Sensor, Digital (Displayed on PC) | ||||||
Pressure Transmitter | Digital (Displayed on PC) | ||||||
Temp. Transmitter | Digital (Displayed on PC) | ||||||
Solvent | 3 way ball valve by Pneumatic | ||||||
Flow Switching Valve | 3 way ball valve by Pneumatic | ||||||
Fraction | 3 way ball valve by Pneumatic, 5 channels (Option : 6 ∼10 channels) | ||||||
Drain | Washing Drain 1 channel + Drain 1 channel | ||||||
Safety Valve | Relief Valve | ||||||
Column Backflow Valve | 2-way On-off Valve, Pneumatic auto control | ||||||
Control / OS | Micro board / Windows OS | ||||||
Utility | Dry compressed air 6 bar | ||||||
Power Requirement | 3-phase AC 220/380V 60㎐ |
